Horizontal Band Sealer
Spout-mounting,Air-sucking & Sealing Machine

RODUCT DESCRIPTION:
MODEL: SY-M903V

1. Applications: For any premade heat sealable pouch.
2. Distance from content to be packed to the bag opening should be over 80mm
     at least.
3. Sealing head can be tilted 0~15° degree forward.
4. The bag is sealed with air extracted to reduce the volume of bag.

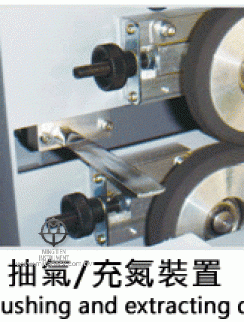

5. Air extracting device.
6. Control panel is equipped with touch screen.(
: SY-M903VT)




※Optional devices:
‧Stainless steel (SUS#304)
‧Coder (solid ink or hot foil)




Power

1800W

Packing speed

0~10 m/minute (adjustable)

Power supply

AC200V/220V/240V, single phase 50/60HZ

Conveying direction

From left to right

Conveyor width

200mm

Bag size

Within 300mm Long 300mm Wide

Temperature range

50℃~300℃

Heating power

600W×2pcs

Conveyor height adjustable range

90mm

Conveyor load weight

5 Kg

Sealing width

5mm (applicable to PE, PP) or 10mm , either one

Packing material thickness

0.06-0.5mm (double-layer thickness)

Machine size

1560L 720W 1010H (mm)

Packing size

1660L 820W 1110H (mm)

Packing function

Sealing  + air extracting

(SY-M903V)

Sealing  + air extracting + air charging

(SY-M903VT)



Remark

For the standard specifications described above, we reserve the right to change without prior n
