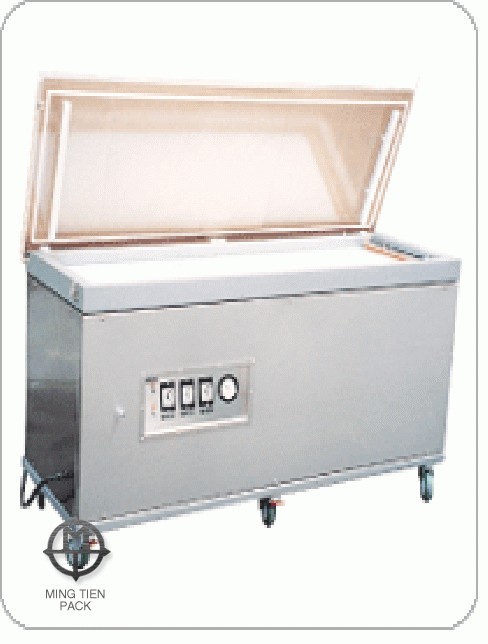

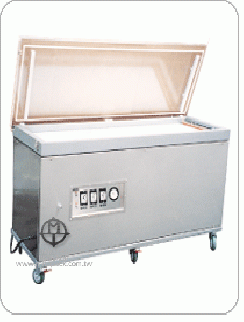

VC-1620

Voltage

220V or 380V / 50Hz / 60Hz / 3PH

BUSCH Pump 3HP
hpa(0.5mbar)

1500-1800min^-1
1.5kw-63m³/hr / 2.2kw-76m³/hr

Machine Size

630L x 1630W x 1200H ( mm )

Vacuum Chamber

470L x 1520W x 200H ( mm )

Sealing Length

450x2 ( mm )

Packing Capacity

2 times/min

Machine Material

Stainless Chamber

Control Panel

Timer

Case Size( L x W x H )

700 x 1690 x 1080 ( mm )(1.28CBM)

Net Weight

320Kgs

Gross Weight

400Kgs
