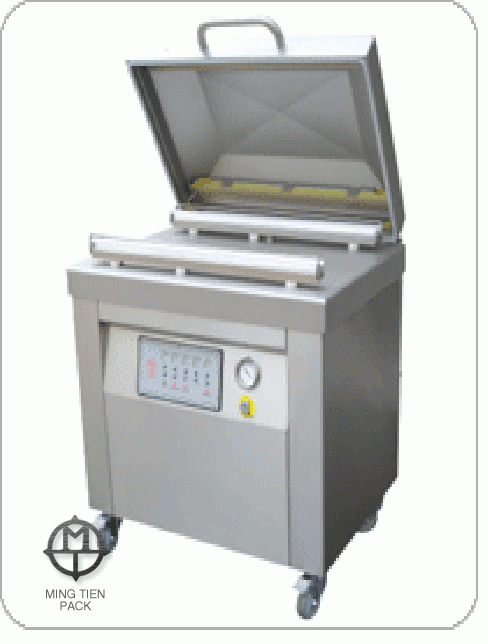

VIC-623  Stainless Steel Vacuum Packaging Machine

Voltage

3PH / 220V or 380V / 50Hz / 60Hz

Power

1.6kw

BUSCH Pump Capacity

1.1kw-40m³/hr / 1.5kw-48m³/hr (2HP)

Machine Size (L x W x H)

37"x36"x38"
920 x 900 x 950 ( mm )

Vacuum Chamber
(L x W x H)

23.6"x32.6"x7"
600 x 830 x 180 ( mm )

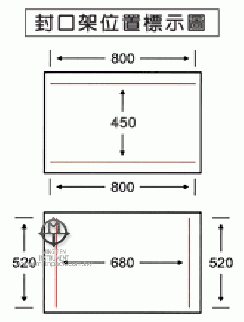

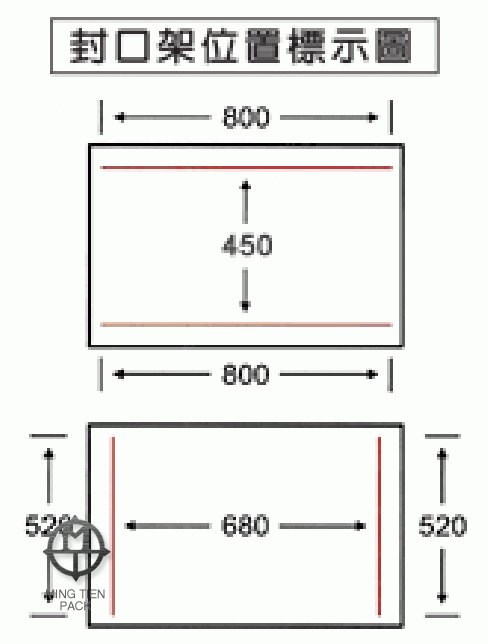

Seal Bar Length

31.4"x2 / 20.4"x2
800x2x / 520x2 ( mm )

Machine Material

Stainless Steel Chamber

Case Size( L x W x H )

39" x 39"x 41"
990 x 990 x 1040 ( mm )(1.02CBM)

Net Weight

250Kgs

Gross Weight

290Kgs
